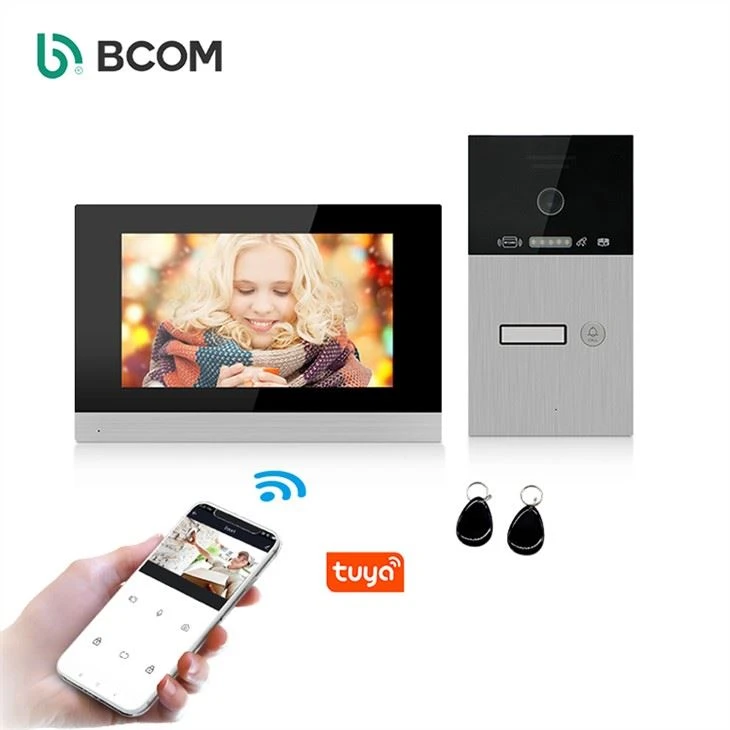

Entri Pintu Video IP 10 Inch

Tombol berbeda untuk opsi
Remote control Aplikasi Tuya untuk berbicara, membuka kunci, memantau, dll
Mendukung catu daya sakelar PoE, lebih mudah dipasang
Memori kartu SD hingga 32G untuk merekam video atau snapshot
Fungsi deteksi gerak

Kirim permintaan

perkenalan produk

Ringkasan

This 10 Inch IP Video Door Entry is developed for single house or multi-family house. Its indoor display is a 10-inch touch screen with a metal housing. The outdoor stations are also metal cased and vandal and rust resistant. They are connected using CAT5/CAT6 cables and both the indoor monitor and the outdoor station have built-in PoE modules so they can be powered by a PoE switch. It can be easily unlocked by card, monitor or Tuya remote control. The elegant and powerful design of the metal housing of the indoor monitor and outdoor station makes this 10" IP video door entry harmonize with various buildings. Available in 1-button, 2-button, 3-button and 4-button options.

This 10 Inch IP Video Door Entry is very easy and fast to install and is very secure from lightning strikes, extending its life and reducing aftermarket problems. It has a WiFi module inside the indoor monitor and can also support remote control with the Tuya App. So when you are not at home, you can use your phone to know who is visiting you. It has a large wide-angle and ultra-high-definition pixels for a more comprehensive and clearer video picture.

1. 10 Inch Monitor Video Door Phone

Spesifikasi produk:

Bagian No.	87111TM
Memantau	10" TFT LCD touch screen
Resolusi	1024x600 piksel
Protokol	MENYESAP
Mode interkom	Komunikasi dupleks penuh
Durasi interkom	120s
Kapasitas sistem	10 monitor dalam ruangan ditambah 6 stasiun luar ruangan ditambah 6 kamera
Koneksi	Kabel CAT5/CAT6
Sumber Daya listrik	oleh sakelar PoE
suhu kerja	-10 ditambah 60 derajat
Metode Instalasi	Permukaan gunung
Format Gambar	format standar JPEG
Memory	Support max. 32GB (>Kelas 10; tidak termasuk)
Dimensi (LxT)	310x198.5 mm

Bagian No.	87253-1C/2C/3C/4C (14 opsi tombol panggil)
Lihat Sudut	110 derajat
Piksel	1.{1}}MP
Penglihatan Malam	lampu LED IR
Kartu	Kartu RFIC untuk membuka kunci
suhu kerja	-40 plus 50ºC
Metode Instalasi	Pemasangan flush
Kunci dukungan	Kunci Elektronik / Magnetik
Ketahanan Tahan Air	IP65
Dimension （WxH)）	116x210 mm

Product Advantages:

1. Large screen: 10 inch touch screen, metal housing

2. With PoE module inside, support PoE switch power supply

3. Quick install, only 2 steps to finish

4. Monitor with WiFi module, support smart phone Tuya App remote control

5. Security alarm with sensors for 8 different zones like gas, water, smoke, etc

6. Motion detection function

2. Anti Vandal IP Video Doorbell

3. 10 Inch Monitor

Rincian Produk:

4. 10 Inch IP Video Door Entry

Daftar Pengepakan

This 10 Inch IP Video Door Entry is with full accesories installation kit to save the customer's cost and time.

5. Packing List

Diagram Pengkabelan Sistem:

Terhubung ke sakelar PoE melalui jaringan CAT5/CAT6, sistem ini mendukung 1 stasiun luar ruangan yang terhubung ke beberapa monitor dan 1 monitor yang terhubung ke beberapa stasiun kontrol akses.

Kapasitas sistem: 10 monitor dalam ruangan ditambah 6 stasiun luar ruangan ditambah 6 kamera

6. IP Video Door Intercom Wiring Diagram
